H-beam Shot Blasting Machine

H-beam Shot Blasting Machine

Description

JPG H-beam shot blasting equipment is designed and manufactured to clean the surface of the section steel. We can design and manufacture different specification according to different requirement of the client.

Application of Shot Blasting Machine

H-beam shot blasting equipment is ideally suited for removing the rust, scale and contamination from the steel surface, which can make the surface clean, bright but with a certain coarseness. So the paint film can attach to the steel surface more firmly, thus improving surface quality and the anti-corrosion capacity.

Main Components

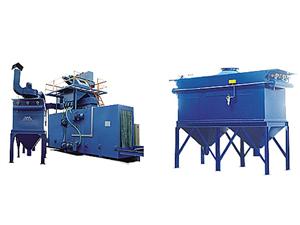

Jinggong shot blasting machine mainly consists of shot blasting chamber, work piece transport system, shots circulation system, dust removing system, electrical control system, etc.

Technical Specifications of H-beam Shot Blasting Equipment

Item Parameter
Accessible section dimensions(w ×h × l) 1200 ×2500 × 20000 mm
Effective clean section area(w × h) 1200 × 2500 mm
Productivity of shot blasting machine 1.5 to 3 m/min
Surface cleanness A-B Sa2 to Sa205(GB8923-88)
Surface roughness 15 to 50PM(GB1030-83)
Impeller head PD-11inpeller head
Quantity of H-beam shot blasting equipment 12 sets
Max. shot blast capacity 220 × 12 = 2640 kg/min
