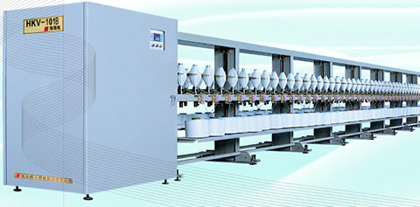

HKV101B type winder

Introduction
This machine is the matching preparing equipment for twisting machine ,it is applicable to wind such raw material as chemical fiber, blended yarn, cotton yarn and so on. Controlled by computer, the machine features easy operation high efficiency and compact structure.

1、TECHNICAL PARAMETERS

TYPE

DOUBLE SIDE SINGLE LAYERS

DOUBLE SIDE DOUBLE LAYERS

spindle

60

120

Each section spindles（spindle）

12

24

section

5

pitch

250

（m/min）

Yarn speed

300～500

forming control

Microcomputer control ball screw

power KW

4.75

weight kg

2205

2400

diamension (mm)

8975×1420×1795

2、PRODUCT FEATURES
Microcomputer control ball screw: many different winding models to choose , good take up forming.
Stationary brake: easy to operate, be agility to control.
Adopts push rod up and down dynamic equilibrium, small power load

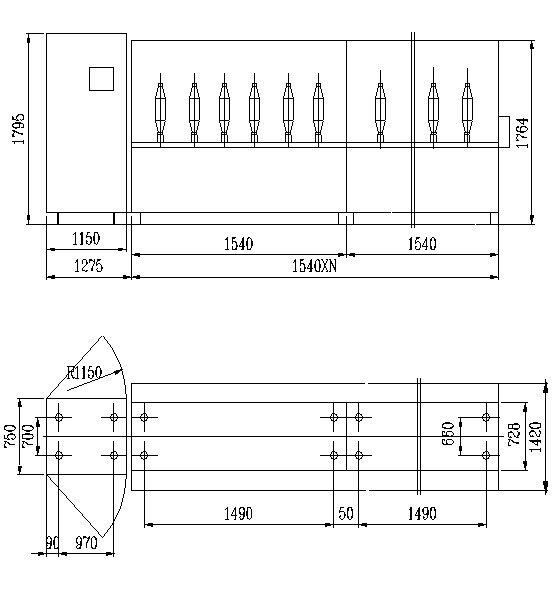

3、 DIAMENSION DRAWING
