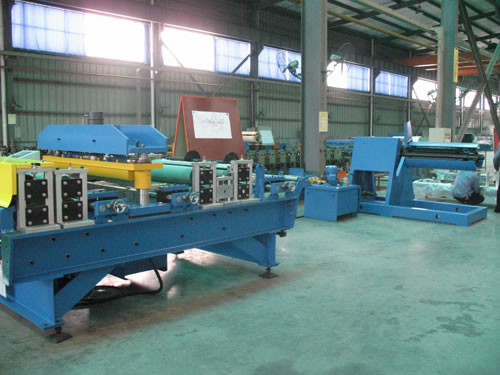

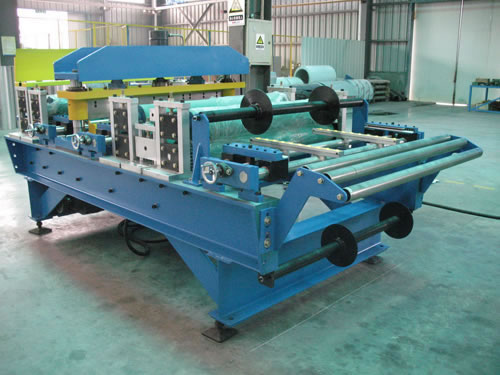

Simple Cut to Length Line

Simple Cut to Length Line

Description
The simple cut to length line is specially designed for low capacity but economical investment. It is developed from ordinary transversal cutting machines, but retains their functions and simplifies the structure to lower cost. This line is also known as simple cut-to-length production line. It is typically used for small slitting demand. Customers often use this simple cut to length line to slit coil for own use rather than for external processing service.

Working Process of Simple Cut-to-Length Production Line
Decoiler → Feeding and Guide Device → Cut to Length → Slitting → Supporting Table

Technical Parameters of Simple Cut to Length Line

Item Parameters Remark
Material Raw material Color sheet and galvanized plate
Yield Strength (Mpa) 230 to 300
Thickness (mm) 0.3 mm to 1.0 mm
Slitting Width (mm) 80mm to 1250 mm
Working Speed (m/min) about 15 m/min
Slitting Blade 6 pcs 1pc as spare part
Main Motor Power (KW) 2.2 depend on final design
Hydraulic Motor Power (KW) 5.5 depend on final design
Total Power 7.7 depend on final design
Dimension (L × W × H) (m) 12 × 3 × 2 depend on final design

Structure Components of Simple Cut-to-Length Production Line

Name Description Qty Technical Details
Decoiler Passive Decoiler 1set arm type, hydraulic expanding, passive decoiling
Main
System		 Feeding Guide Device 1set 1. Roll inner supporting structure type: column
2. Motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear
3. Cutting blade material Cr12 quenched treatment
4. Slitting blade material Cr12 quenched treatment
5. Roll conveyor adopts 4 group rubber rollers.
Film System 1 set
Roller Conveyor 1set
Cutting Device 1set

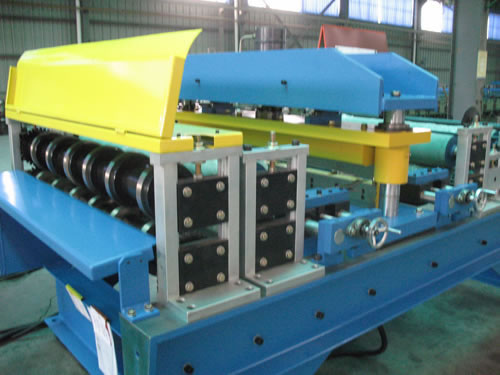

Slitting Device 1set
Supporting Table Supporting Table 1set Support finished products. Length will be 4 m.
Hydraulic System 1set Main machine and decoiler uses inside-placed and separated hydraulic station.

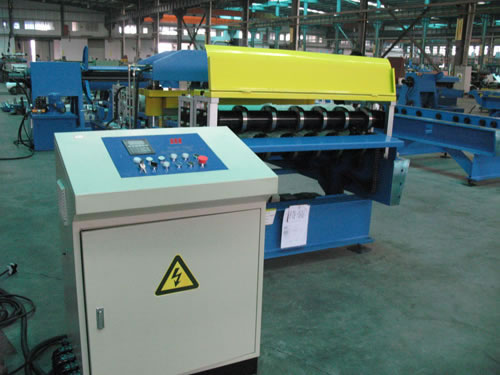

Electric System 1set 1. PLC Control, encoder automatic cutting in length
2. Operation mode: touch screen and button
3. Adjust the speed by AC frequency conversion.

Zhejiang Jinggong Science & Technology Co., Ltd is a specialized manufacturer of simple cut to length lines in China. In addition to this cut-to-length production line or transversal cutting machine, we also offer cold roll forming machinery, sandwich panel line, steel coil slitting line, metal working machinery, shot blasting machine, metal coil sheet, etc. We have a professional technical team of first-class rich experience and well-trained technicians. The simple cut to length line developed and designed by us meets the international standard. Our cut-to-length production lines have been used and widely praised by clients from more than 30 countries and areas. We are very delighted to provide OEM production of transversal cutting machines.
