Cable Tray Roll Forming Machine

Cable Tray Roll Forming Machine

Description

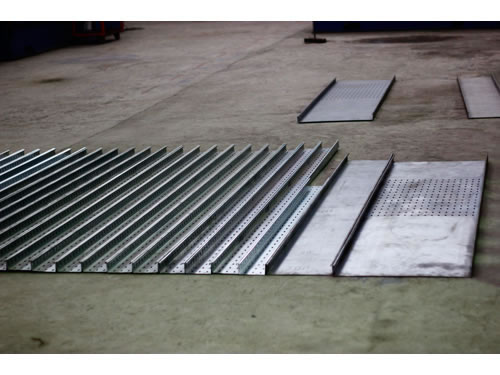

Cable tray roll forming machine (also called cable ladder roll forming machine) is capable of making different sizes of cable trays through replacing punching moulds. The cable trays produced by this roll forming production line are extensively used in factories and other buildings because of their accurate robustness. Cable tray roll forming machine consists of decoiler (uncoiler), leveling machine (flattener), servo feeding device, punching system, front cutting device, guiding device, roll former, rear straightening device and run-out table. With full and special experience, we can customize cable tray roll forming machines or cable tray roll forming production lines according to customers’ profile drawings and specifications.

Characteristics

Technical Specifications

Raw Material Item Parameters Remark
Material Type cold rolled steel or
galvanized sheet
Special material shall be tested before finalization.
Thickness 1 mm Big range of thickness may cause forming dimension tolerance.
Yield Strength Q235
Production Profiling Section As per customer’s requirement The basic element for quotation
Machine Material Roller Material Gr12
Shaft Material 40Cr
Rolling Station Wall Material QT470
Shearing Blade Material Cr12
Line Speed Roll Forming Speed 12 m/min
Punching Punch Depend on hole size Interchangeable die
Transmission Gear
Straightening Roller Straightening
Shearing Pre-Cut Precision ± 1.5 mm / 6000 mm
Run-Out Table Simple Table 2 meters at each As per customer’s requirement
Hydraulic System Valve and Pump Brand can be optional.
Controller System Plc Mitsubishi or same level
Coil Car Coil Car 3t or 5t optional

Our company is a specialized supplier of cable tray roll forming machines or cable ladder roll forming machines in China. In addition to this roll forming production line, we also manufacture high frequency welded pipe mill, sandwich panel line, steel coil slitting line, cut to length line, metal working machinery, shot blasting machine, metal coil sheet, etc. We inspect each component for non-standard products and adopt sampling inspection for the component of standard parts. With over 15 years’ production experience, our cable tray roll forming machines have received great recognition from our customers from more than 30 countries.
