Racking Roll Forming Machine
Introduction

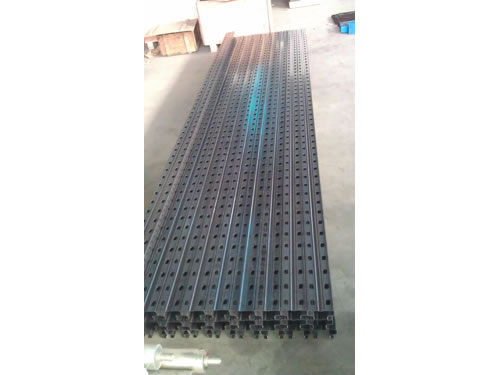

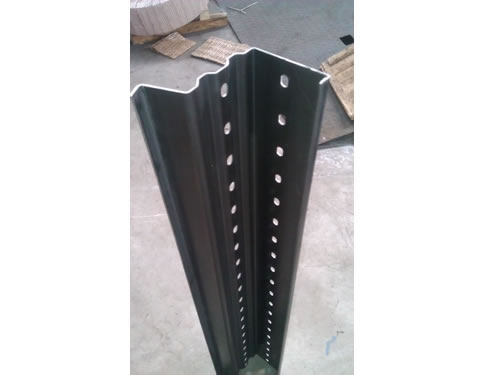

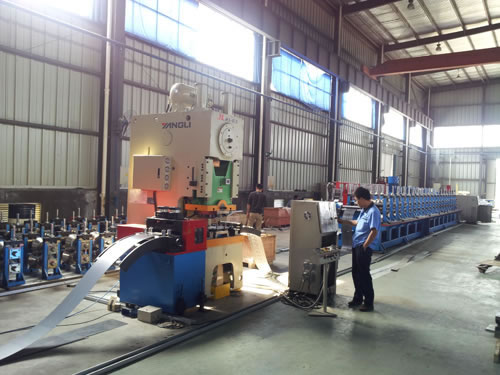

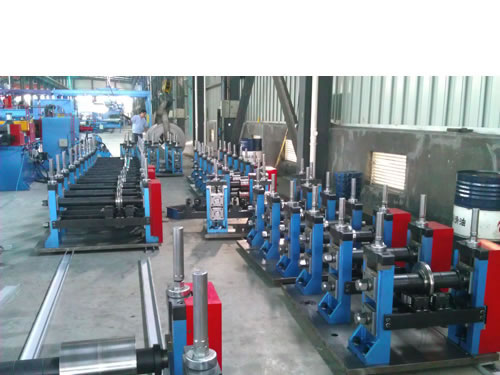

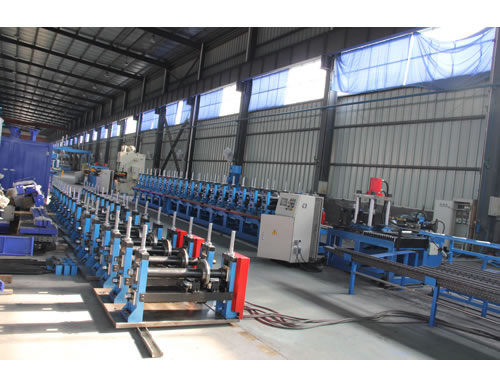

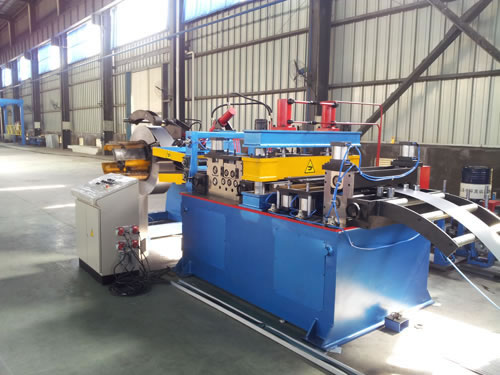

Racking roll forming machine adopts servo controlled material feeding technology for complex punching to guarantee precision. This storage rack roll forming machinery also adopts track cutting technology to ensure the machine capacity and gear box transmission and ensure the machine’s rigidity and working strength. Racking roll forming machine is also known as shelf roll forming machine, shelving rack roll forming machine, shelving roll forming machine or shelves rack roll forming machine. This storage rack roll forming machinery is composed of automatic decoiler, guiding device, leveling and feeding device, punching unit, molding parts, fly shearing system, run-out table, electronic control system and hydraulic system.
Features of Racking Roll Forming Machine

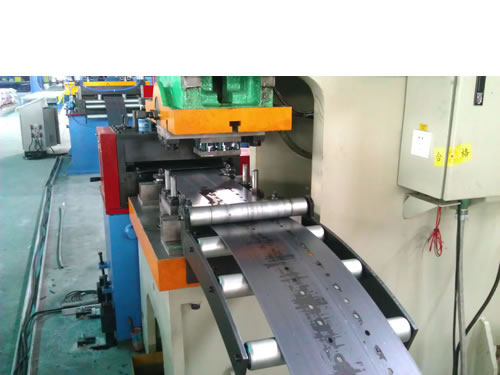

- The punching can be designed according to customers’ requirements. The storage device will help to coordinate the operation of each part of this storage rack roll forming machinery so as not to produce speed conflict.
- For different dimensions of racking products, users can adjust the product dimension by changing the spacer bush in the racking roll forming machine.

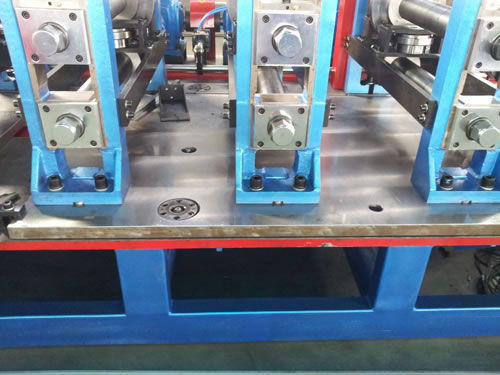

- The design of this storage rack roll forming machinery enables the roll forming part to be changed quickly. That is why only one machine can produce several different profiles and the forming unit can be changed in a short time.
- We have a professional technical team owning more than 15 years’ working experience.
Technical Specifications
| Raw Material | Item | Parameters | Remark |
| Material Type | hot rolled steel | Special material shall be tested before finalization. | |
| Thickness | 1.5 mm to 2 mm | Big range of thickness may cause forming dimension tolerance. | |
| Yield Strength | Q235 | — | |
| Production | Profiling Section | As per customer’s requirement | The basic element for quotation |
| Machine Material | Roller Material | Gr12 | — |
| Shaft Material | 40Cr | — | |
| Rolling Station Wall Material | QT470 | — | |
| Shearing Blade Material | Cr12 | — | |
| Machine Power Requested | Decoiler | 1.1 KW | For three tons |
| Leveling | 3 KW | — | |
| Servo Feeding | 3 KW | — | |
| Roll Forming | 37 KW | — | |
| Line Speed | Roll Forming Speed | 10 to 15 m/min | — |

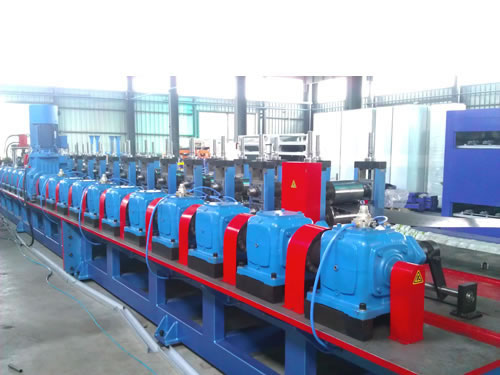

| Forming Stations | Quantity of Rolling Station |
16 stands | Cassette design concept is advised. |
| Punching | Punch | Depend on hole size | Interchangeable die |
| Transmission | Gear Box | — | — |

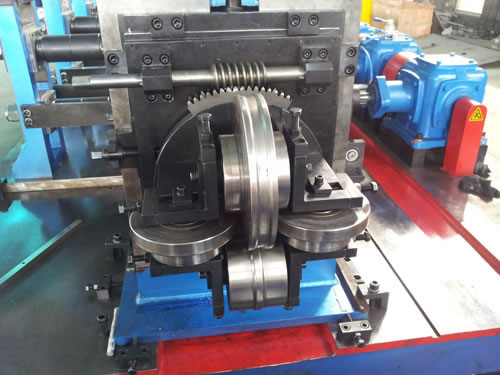

| Straightening | Roller Straightening | 4 rollers | — |

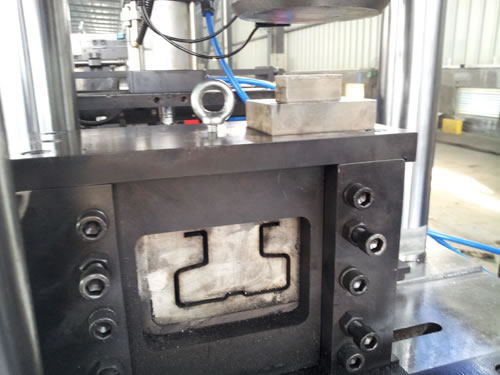

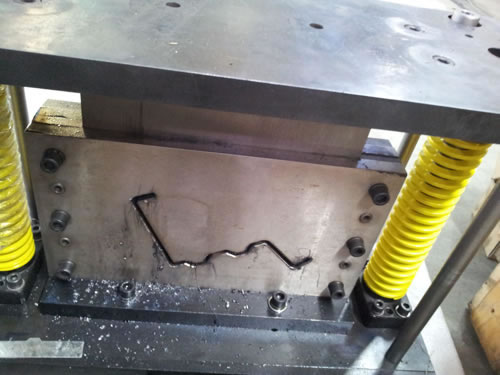

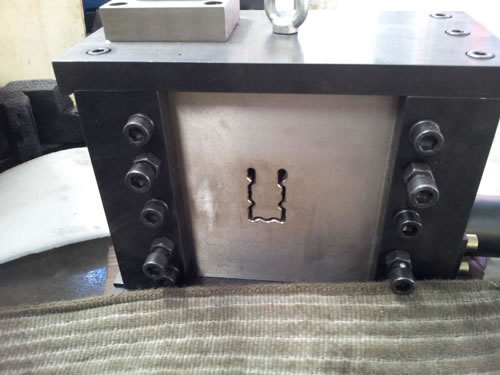

| Shearing | Fly Shearing | — | Precision ±1.5 mm / 6000 mm |

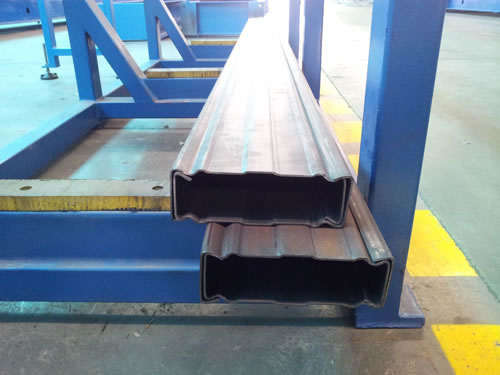

| Product Supporter | Discharging Table | 6 m, 9 m or 11.8 m | As per customer’s requirement |
| Hydraulic System | Valve and Pump | — | Brand can be optional. |
| Controller System | PLC | — | Mitsubishi or same level |
| Butt Welding | Cut and Welding Platform | Argon welding | Customers supply manual welding machines. (optional) |
| Coil Car | Coil Car | 3t or 5t | optional |
Delivery Time
Our company will deliver this storage rack roll forming machinery within 120 days after receiving 30% deposit of contract value.
Zhejiang Jinggong Science & Technology Co., Ltd is a professional manufacturer of racking roll forming machines in China. In addition, our company is also engaged in producing high frequency welded pipe mill, sandwich panel line, steel coil slitting line, cut to length line, metal working machinery, shot blasting machine, metal coil sheet, and so on. We supply reliable and durable storage rack roll forming machinery to our customers. Our racking roll forming machines have been exported to Russian, Brazil, India, South Africa, Germany, USA, Mexico, Saudi Arabia, etc.
