Roller Shutter Door Forming Machine

Roller Shutter Door Forming Machine

Description

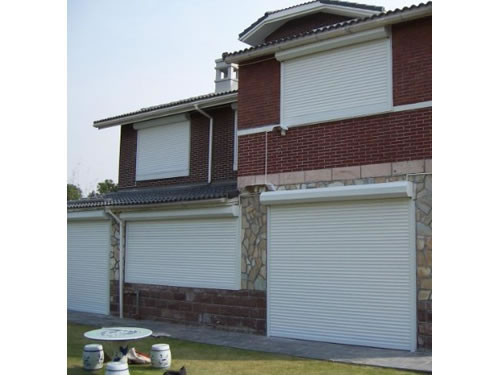

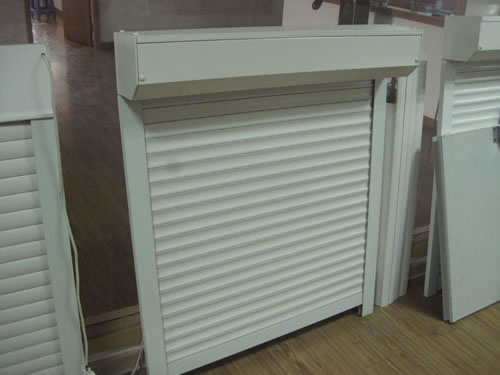

Roller shutter door forming machine can make roller shutter doors with high security. This roller shutter door roll forming machine is also used for rolling fire doors, rolling steel doors, fire doors, rolling shutters, offshore rolling doors, offshore rolling fire doors, storm doors, rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, rolling fire shutters, insulated fire doors, etc. Zhejiang Jinggong Science & Technology Co., Ltd mainly provides roller shutter door forming machines (roller shutter door roll forming machines) configured with PU injection or without PU injection. (PU refers to poly urethane).

Applications
Roller shutter door forming machine is extensively used in industrial and commercial fields, retail areas, airports, hotels, institutions, malls and shopping centers. Our roller shutter door roll forming machines are also designed for warehouses, dock doors, distribution outlets, food concession stands, hospitals, store fronts and oil-rig platforms.

Parameters of Roller Shutter Door Roll Forming Machine
1. PU Injected Roller Shutter Door Forming Machine

Steel Coil Thickness 0.3 mm to 0.5 mm
Steel Coil Width 117 mm to 310 mm
Rolling Stations 41
Main Motor Power 11 KW
Total Weight approximately 12 tons
Working Speed 20 to 28 m/min

2. Single Sheet Roller Shutter Door Roll Forming Machine

Item Parameter Remark
Suitable material Type Galvanized steel
Thickness (mm) 1.0
Yield Strength (Mpa) 450 to 550
Width (mm) 120, 145 or 157
Forming Speed (m/min) About 20 to 25 Exclude cutting time
Forming Main Motor Power (KW) 3*6 Depend on final design
Main Machine Hydraulic Station Power (KW) 5.5 Depend on final design
Total Power 23.5 Depend on final design
Power AC415V, 50Hz, 3 Phase As per customer
Dimension (L × W × H) (mm) 20 × 3 × 1.5 Depend on final design

Founded in 2006, Our company is dedicated to providing roller shutter door forming machines for customers all over the world. In addition to roller shutter door roll forming machines, we also supply high frequency welded pipe mill, sandwich panel line, steel coil slitting line, cut to length line, metal working machinery, shot blasting machine, metal coil sheet, etc. Based on decades of experience, Zhejiang Jinggong Science & Technology Co., Ltd is capable of designing, manufacturing, assembling and testing roller shutter door forming machines. Our roller shutter door roll forming machines have been exported to more than 30 countries and are well received by clients.
